Day 13 – Coloring your tools holidays

Jingle bells, jingle bells,
Santa's busy guy,
Don't we bother him with what
We can make ourselves…

And if you’re in doubt yet whether Santa was really overloaded last year, just check out the advent calendar of 2020. That’s why back then I fetched out an old, dusty reddish-white cap, pulled it over my ears and started a small home-brew project to help my wife in her job.

To be fully honest here, it was a gift to myself too since for some time I planned to learn more about front-end programming. A good chance to look at Vue and TypeScript, why not to take it? There is Cro, Cro::RPC::JSON for APIs, Red for databases. Of course, there is Raku to bind them all… Oh, pardon me, it’s a different epic story to be told when time comes!

This article (is it really a post? ah, whatever…) started with something, any one doing backend development knows well about: the need to monitor the server script, restart it upon failures, or when sources changes, etc., etc. Aside of that, I also wanted to keep my eye on rebuilds of the frontend code. And since I didn’t like keeping both tasks in two different shell sessions, I came up with a script runner.raku which was controlling them and juggling processes the way I needed.

As always, there is a “but”. This time I quickly realized that often simultaneous changes of both server and frontend sources results in a chaotic mixture of outputs, hard to read and to locate errors. Having some experience in creating a prototype of a text UI framework, I soon started considering something for the runner script to separate and manage outputs of each task. Unfortunately, Vikna was not nor yet ready for real use; and however much I’d like to complete the project, I just don’t have enough time for it. So I gave up…

… Until Terminal::UI by Brian Duggan was released. “Oh!” – I said to myself. And… Well, nothing. Because then I started thinking: since npm build outputs in colors and it is really easy to spot any useful bits of information this way, I’d like to preserve these colors. But this would require parsing the input, picking any control sequences from it, analyzing them, translating into… Oh, my, thanks! After all, not everything is that bad about the old plain flat stream of sometimes mixed up output. Not that often it happens, isn’t worth the troubles…

But once there was a day when I thought: perhaps there is a module for parsing ANSI sequences? And thrown I a dragnet into the waters of Raku Land, and came it back empty, and made I a helpless gesture… Only to see in two days an announcement of Geoffrey Broadwell releasing his Terminal::ANSIParser! It was the sign. After all, having something for UI, something for parsing the input, and an already working process orchestrator – how long would it take to forge them into something? Yes, my naïvety again and again. Once started, I wanted to get from it:

  • Split coloring for stdout/stderr
  • Split process output from related runner script status change messages
  • A specialized current state indication row (state bar)
  • print/say methods for outputting different kinds of messages, because Terminal::UI only has put which doesn’t even wrap lines. Basically, it’s what the module is primarily designed for: output lines and navigate them.
  • Search for strings or regexes with color marking of matches found
  • Input line with history for the above feature

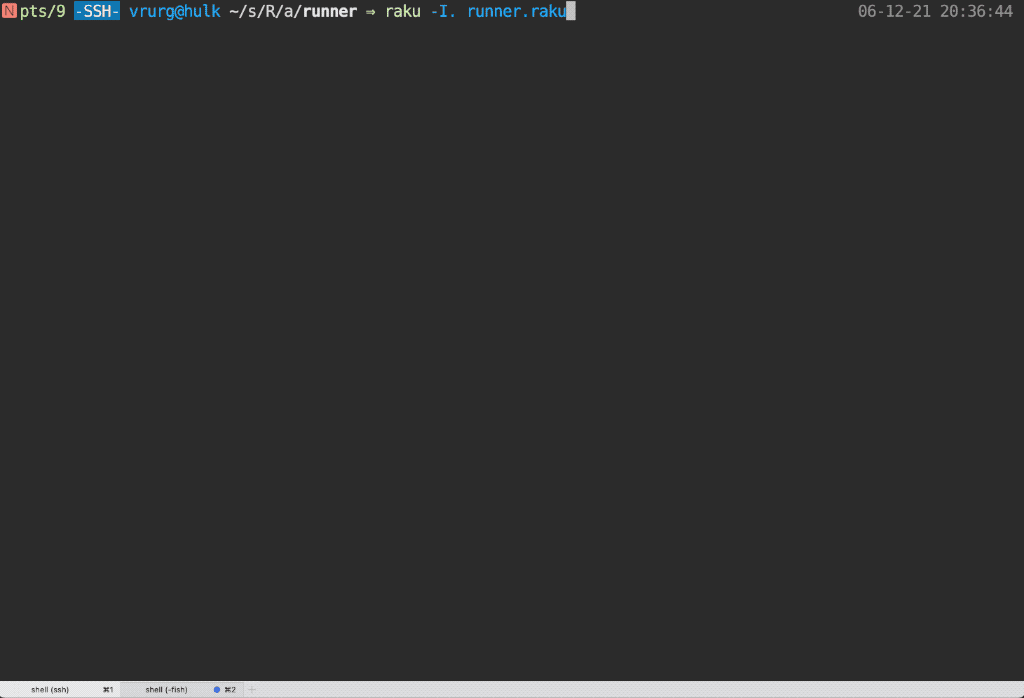

And I got it. All. Not that it took me a couple of days, but here is what the result looks like:

Only later as it came to me: look, it’s a simple terminal emulator! Without keyboard passing into subprocesses, though. But with ANSI sequence parsing, and translating, and showing the result back to user.

It would be too much to discuss all the aspects of the resulting code. For adventurous ones the source is available. It consist of an UI module, which is responsible for all the in/out interactions; and of a runner module, doing the management work. The latter primarily consists of the process orchestrator, and barely of much interest here. So, let’s focus on the UI.

The core of it is Terminalish role which is responsible for gathering text streams, seasoned with ANSI ESC-sequences, from different sources, buffering their intermediate representation, possibly doing some processing work like applying search requests, and sending the result to some kind of output.

For example, to colorize your own message the following is expected to be done:

use Terminal::ANSI::OO 'ansi';
...
$terminalish-pane.say:
    ansi.blue,
    "This is blue",
    ansi.text-reset,
    " this is in default colors";

$terminalish-pane is a pane object of Terminal::UI with Terminalish role mixed in. Remove it and leave the say alone and it will work as expected on a terminal emulator of your choice.

Even though I made it around Terminal::UI, with limited amount of changes the role can be adapted to any other kind of UI library/framework since output is just a side effect of its primary purpose.

Internally the role is using the following components:

  • CSIProcessor is responsible for filtering input, passed through Terminal::ANSIParser, and translating it into the internal representation implemented by BufLine. This is the component which knows the ANSI sequences meaning.
  • BufLine, which holds a single line of scroll buffer with all the attributes necessary to display it correctly. It also responsible for transforming the line into output-ready form, providing support for line wrapping, highlighting search results, and colorizing stdout/stderr if requested.

The Terminalish role itself manages input, scroll buffer, and interacts with user code. It would better off to have it as a class, inheriting from Terminal::UI::Pane, but Terminal::UI doesn’t support inheritance of its components.

One of the biggest lessons learned, while implementing the role, was not to operate the ESC-sequences directly unless there are no plans to manipulate them in either way. Even a simplest manipulation in plain sight may bring troubles, except for bare removal.

Or it would be fine if the plan is to produce highly ineffective stream of output symbols, bloated with rubbish ESC-sequences…

Way more effective approach is to keep all the style attributes as bit-masks; and all the colors in whichever form you like, but one color per foreground/background, per symbol. Eventually, I introduced a Style class, which is a commonplace solution, but it works. Instances of the class are attached to each individual symbol.

A big advantage of Style is it’s ability to produce a difference of its two instances. The difference, in turn, is a highly effective approach to determine when an ANSI ESC sequence is to be inserted into the output. And even more importantly, what this sequence must consist of! Because only changes will make it through. For example, if we have a string “ab”, and “a” styled with green on blue + italic, whereas “b” is yellow on blue + bold + italic then the output would be made of:

ansi.green ~ ansi.bg-blue ~ ansi.italic ~ "a"
~ ansi.yellow ~ ansi.bold ~ "b"

I was rather surprised to see how effective the approach is when the firsts test runs resulted in rather decent performance, even though no real code optimization were done. Actually, since the whole thing was never planned for publication, no optimization has been done yet and not even planned to.

Also, as I mentioned already, the approach works extremely well when one needs to mark some part of the text with special colors of attributes. It is sufficient just to apply them to the correct symbols – and the rest will happen automatically! Oh, and don’t forget that as soon as the search results are not needed any more, the original style must be restored. This requirement resulted in an overlay style layer, which is applied over the original style. No need to say how much easier is it to flatten down two well-structured objects!

There one more trick I’d like to mention. When I started implementing SearchInput role, which is responsible for implementing input field for text search functionality, I realized that Terminal::UI doesn’t have support for turning the cursor on only when it is needed; and to maintain its position at where it is needed. I could send a sequence to enable it, but if a process generates some output at the time, you know what happens: it “snows”. And, worse of all, when its done snowing, the cursor is located anywhere else, but inside the input field.

I didn’t have time for a PR and came up with a workaround, which takes the $*OUT handle, wrapps it into my OUTWrapper object. The object can be told about when the cursor is needed and where exactly it is needed. Then it intercepts print method of the original $*OUT handle, hides the cursor before passing the control to the original method, and restores after that. All this only whenever necessary. The solution is so simple, that I like it despite its hackyness! Best of all, it doesn’t care about edge cases because I found none. Aside of service methods, the core of it is this method:

    method print(|c) {
        if $!force {
            $!out.print: ansi.cursor-off,
                         |c,
                         ansi.cursor-on, ansi.move-to($!row, $!col);
        }
        else {
            $!out.print: |c
        }
    }

That’s all, folks… With OUTWrapper.new, all I is needed to achieve the goal is: $*OUT.force-at($x, $y) – and visible cursor will stick to the required position.

Now, as I’m finishing and looking back at this text, it feels somewhat guilty of how little code it has. But the feeling lasts for only a short moment because the article has a whole project attached to it. The project is a demo with regard to it using only a dummy Cro server as a persistent process; and ls -lA command as a replacement for the frontend building. But otherwise it’s a fully functional, though unpolished, code. Just take it and use if there is a use for it. Let it be my little hand-made gift to the community for the upcoming holiday!

And what about the gift for my wife? Well… I turned out to be a terrible elf as it is not done it yet, in the year passed! With good excuses, though, like Vue+TypeScript learning from the scratch is very time consuming, especially when done in spare time. But more importantly, it allowed me to make great advances in Cro::RPC::JSON module, especially in areas, related to WebSockets support. I created Config::BINDish module, a beast of configuration formats, to which I hope to come back in a later article, if time allows. Even a couple of Rakudo bugs were squashed as a result of working on the gift. So, a lot has been done, except… But there is no way I’d give up on this!
