Introduction

This document (notebook) describes three ways of making mazes (or labyrinths) using graphs. The first two are based on rectangular grids; the third on a hexagonal grid.

All computational graph features discussed here are provided by “Graph”, [AAp1]. The package used for the construction of the third, hexagonal graph is “Math::Nearest”, [AAp2].

TL;DR

Just see the maze pictures below. (And try to solve the mazes.)

Procedure outline

The first maze is made by a simple procedure which is actually some sort of cheating:

  • A regular rectangular grid graph is generated with random weights associated with its edges.
  • The (minimum) spanning tree for that graph is found.
  • That tree is plotted with exaggeratedly large vertices and edges, so the graph plot looks like a maze.
    • This is “the cheat” — the maze walls are not given by the graph.

The second maze is made “properly”:

  • Two interlacing regular rectangular grid graphs are created.
  • The second one has one less row and one less column than the first.
  • The vertex coordinates of the second graph are at the centers of the rectangles of the first graph.
  • The first graph provides the maze walls; the second graph is used to make paths through the maze.
    • In other words, to create a solvable maze.
  • Again, random weights are assigned to edges of the second graph, and a minimum spanning tree is found.
  • There is a convenient formula that allows using the spanning tree edges to remove edges from the first graph.
  • In that way, a proper maze is derived.

The third maze is again made “properly” using the procedure above with two modifications:

  • Two interlacing regular grid graphs are created: one over a hexagonal grid, the other over a triangular grid.
    • The hexagonal grid graph provides the maze walls; the triangular grid graph provides the maze paths.
  • Since the formula for wall removal is hard to derive, a more robust and universal method based on nearest neighbors is used.

Setup

Packages

Here are the packages loaded for use in the rest of the notebook:

use Graph;
use Graph::Classes;

use Math::DistanceFunctions;
use Math::Nearest;

use Data::TypeSystem;
use Data::Translators;
use Data::Generators;

Conversion

This sub is used to invoke the Graphviz graph layout engines:

sub dot-svg($input, Str:D :$engine = 'dot', Str:D :$format = 'svg') {
    my $temp-file = $*TMPDIR.child("temp-graph.dot");
    $temp-file.spurt: $input;
    my $svg-output = run($engine, $temp-file, "-T$format", :out).out.slurp-rest;
    unlink $temp-file;
    return $svg-output;
}

Simple Maze

In this section, we create a simple, “cheating” maze.

Remark: The steps are easy to follow, given the procedure outlined in the introduction.

# Maze dimensions
my ($n, $m) = (10, 25);

# Base grid graph
my $g = Graph::Grid.new($n, $m, :!directed);

# Using the edges of the grid graph make a new graph assigned random edge weights
my $gWeighted = Graph.new($g.edges(:dataset).map({ $_<weight> = random-real([10,1000]); $_}))


# Graph(vertexes => 250, edges => 465, directed => False)

Find the spanning tree of the graph:

my $mazePath = $gWeighted.find-spanning-tree


# Graph(vertexes => 250, edges => 249, directed => False)

Shortest path from the first vertex (bottom-left) to the last vertex (top-right):

my @path = $mazePath.find-shortest-path('0_0', "{$n-1}_{$m-1}");
@path.elems


# 56

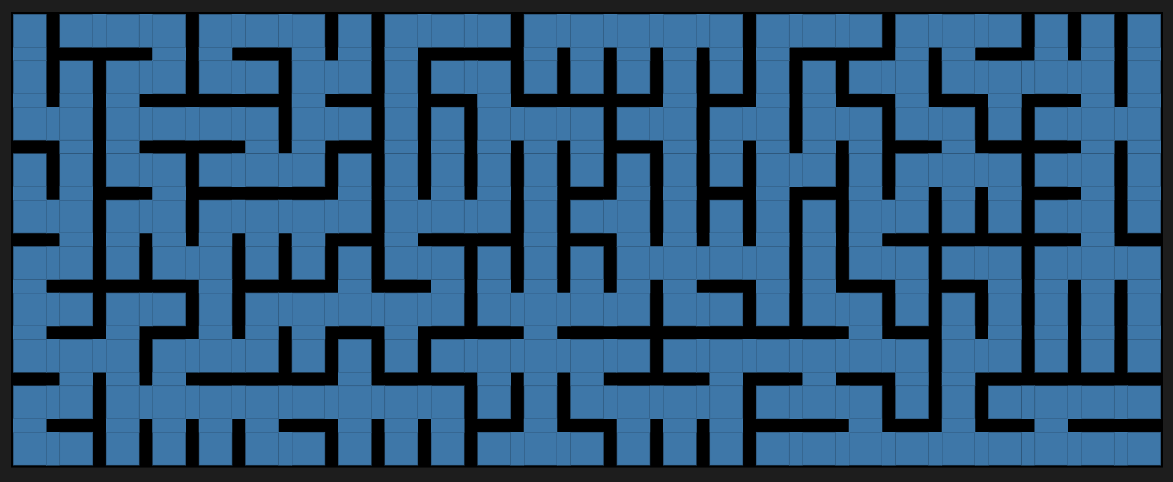

Graph plot:

#% html
my $simpleMaze = Graph.new($mazePath.edges);
$simpleMaze.vertex-coordinates = $g.vertex-coordinates;

my %opts =
    background => "Black",
    :!node-labels,
    :!edge-lables,
    node-shape => 'square',
    node-width => 0.7,
    node-color => 'SteelBlue',
    node-fill-color => 'SteelBlue',
    edge-thickness => 52,
    edge-color => 'SteelBlue',
    size => '10,6!',
    engine => 'neato';

$simpleMaze.dot(|%opts):svg

The “maze” above looks like a maze because the vertices and edges are rectangular with matching sizes, and they are thicker than the spaces between them. In other words, we are cheating.

To make that cheating construction clearer, let us plot the shortest path from the bottom left to the top right and color the edges in pink (salmon) and the vertices in red:

#%html
my $gPath = Graph::Path.new(@path);
$simpleMaze.dot(highlight => {Salmon => $gPath.edge-list, Red => $gPath.vertex-list}, |%opts):svg

Proper Maze

A proper maze is a maze given with its walls (not with the space between walls).

Remark: For didactical reasons, the maze in this section is small so that the steps—outlined in the introduction—can be easily followed.

Make two regular graphs: one for the maze walls and the other for the maze paths.

# Maze dimensions
my ($n, $m) = (6, 12) »*» 1;

# Walls graph
my $g1 = Graph::Grid.new($n, $m, prefix => 'w');

# Space graph
my $g2 = Graph::Grid.new($n-1, $m-1);
$g2.vertex-coordinates = $g2.vertex-coordinates.map({ $_.key => $_.value >>+>> 0.5 }).Hash;

$g2


# Graph(vertexes => 55, edges => 94, directed => False)

Maze Path Graph:

my $mazePath = Graph.new($g2.edges(:dataset).map({ $_<weight> = random-real([10,1000]); $_}));
$mazePath = $mazePath.find-spanning-tree;
$mazePath.vertex-coordinates = $g2.vertex-coordinates;

$mazePath


# Graph(vertexes => 55, edges => 54, directed => False)

Combined Graph:

my $g3 = Graph.new([|$g1.edges, |$mazePath.edges]);
$g3.vertex-coordinates = [|$g1.vertex-coordinates, |$mazePath.vertex-coordinates].Hash;

$g3


# Graph(vertexes => 127, edges => 180, directed => False)

Plot the combined graph:

#% html
$g3.dot(
    highlight => $mazePath,
    :node-labels,
    background => "Black",
    node-width => 0.45,
    node-height => 0.2,
    edge-width => 4,
    size => '10,10!',
    engine => 'neato'
):svg

Remove wall edges using a formula:

my $g4 = $g3.clone;
for $mazePath.edges -> $e {

    my ($i, $j) = |$e.key.split('_')».Int;
    my ($i2, $j2) = |$e.value.split('_')».Int;

    if $i2 < $i || $j2 < $j {
        ($i2, $j2, $i, $j) = ($i, $j, $i2, $j2)
    }

    # Horizontal
    if $i == $i2 && $j < $j2 {
        $g4 = $g4.edge-delete( "w{$i2}_{$j2}" => "w{$i2+1}_{$j2}")
    }

    # Vertical
    if $j == $j2 && $i < $i2 {
        $g4 = $g4.edge-delete( "w{$i2}_{$j2}" => "w{$i2}_{$j2+1}")
    }
}

$g4


# Graph(vertexes => 127, edges => 126, directed => False)

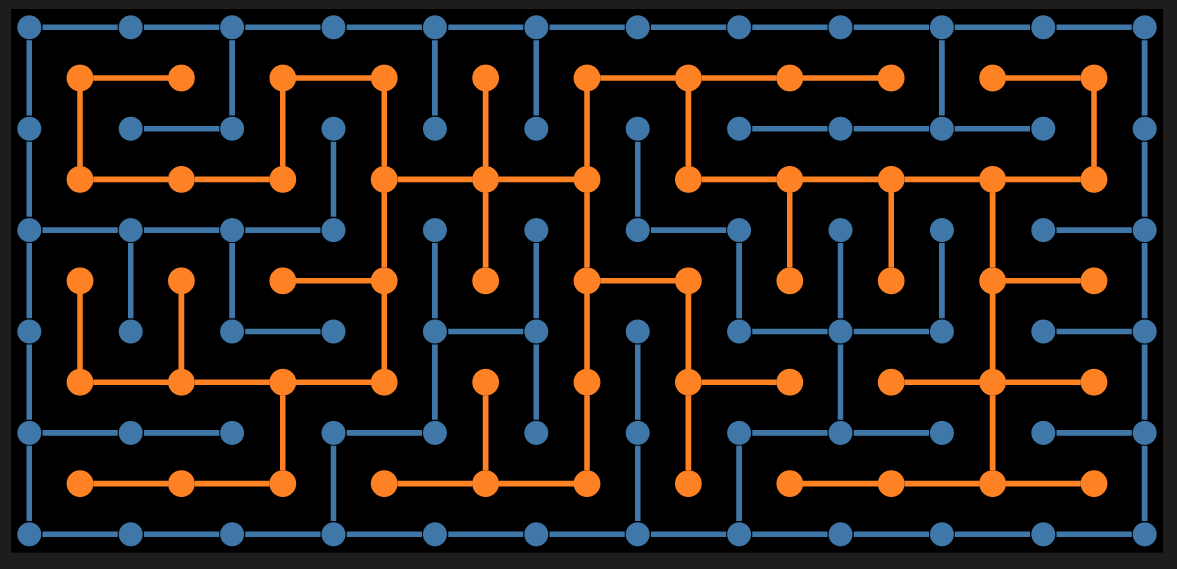

Plot wall graph and maze space graph:

#% html
$g4.dot(
    highlight => $mazePath,
    :!node-labels,
    background => "Black",
    node-width => 0.25,
    node-height => 0.2,
    edge-width => 4,
    size => '10,10!',
    engine => 'neato'
):svg

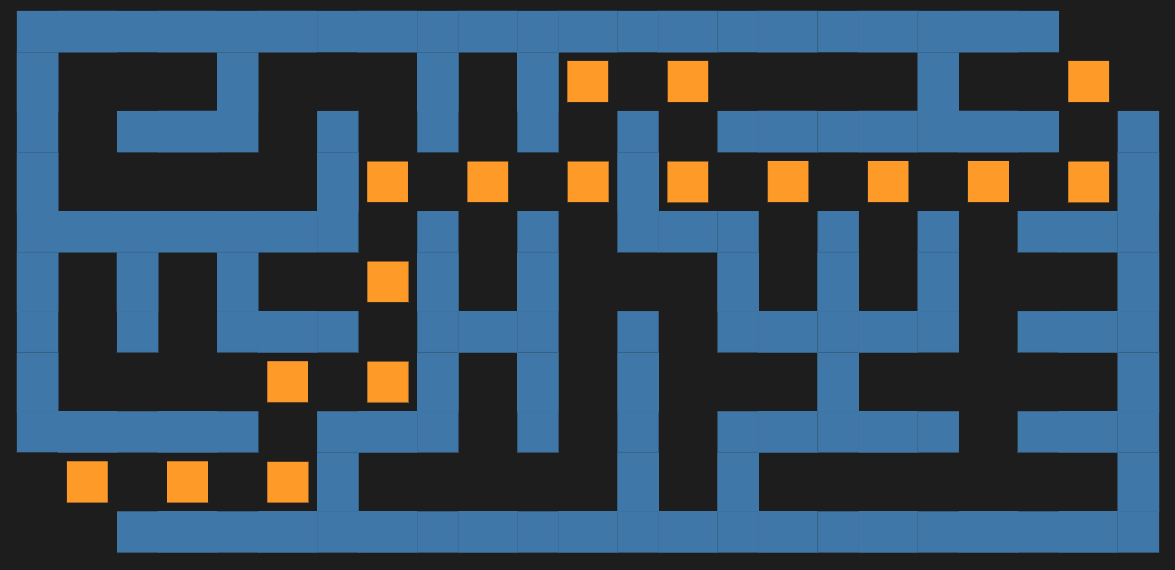

Fancier maze presentation with rectangular vertices and edges (with matching sizes):

#% html
my $g5 = $g4.subgraph($g1.vertex-list);

my @path = $mazePath.find-shortest-path('0_0', "{$n-2}_{$m-2}");
say @path.elems;

my @mazeStartEnd = "w0_0", w0_0 => "w0_1", w0_0 => "w1_0", "w{$n-1}_{$m-1}", "w{$n-1}_{$m-1}" => "w{$n-1}_{$m-2}", "w{$n-1}_{$m-1}" => "w{$n-2}_{$m-1}";

$g4.dot(
    highlight => {'#1F1F1F' => [|$mazePath.vertex-list, |$mazePath.edge-list, |@mazeStartEnd], Orange => @path},
    #highlight => {'#1F1F1F' => @mazeStartEnd},
    background => '#1F1F1F',
    size => '10,10!',
    :!node-labels,
    node-shape => 'square',
    node-color => 'SteelBlue',
    node-fill-color => 'SteelBlue',
    node-width => 0.4,
    edge-width => 30,
    engine => 'neato'
):svg

Hexagonal Version

Let us create another maze based on a hexagonal grid. Here are two grid graphs:

  • The first is a hexagonal grid graph representing the maze’s walls.
  • The second graph is a triangular grid graph with one fewer row and column, and shifted vertex coordinates.
# Maze dimensions
my ($n, $m) = (6, 10) »*» 2;

# Walls graph
my $g1 = Graph::HexagonalGrid.new($n, $m, prefix => 'w');

# Space graph
my $g2 = Graph::TriangularGrid.new($n-1, $m-1);
$g2.vertex-coordinates = $g2.vertex-coordinates.map({ $_.key => $_.value >>+<< [sqrt(3), 1 ] }).Hash;

$g2


Graph(vertexes => 240, edges => 657, directed => False)

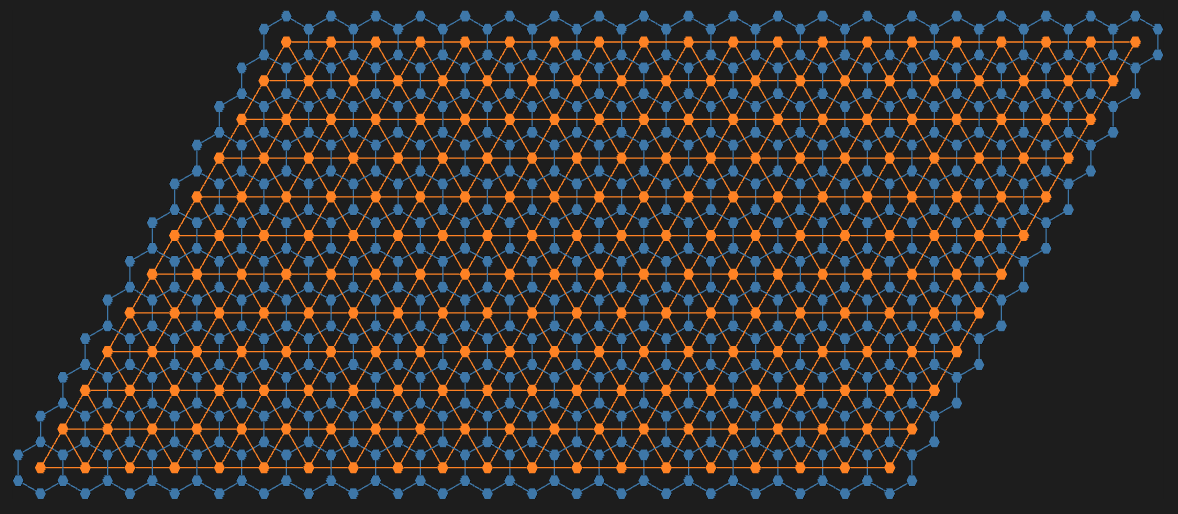

#% html
$g1.union($g2).dot(
    highlight => $g2,
    :!node-labels,
    background => "#1F1F1F",
    node-width => 0.85,
    node-height => 0.85,
    node-font-size => 28,
    node-shape => 'hexagon',
    edge-width => 7,
    size => '10,10!',
    engine => 'neato'
):svg

Maze Path Graph:

my $mazePath = Graph.new($g2.edges(:dataset).map({ $_<weight> = random-real([10,1000]); $_}));
$mazePath = $mazePath.find-spanning-tree;
$mazePath = Graph.new($mazePath.edges);
$mazePath.vertex-coordinates = $g2.vertex-coordinates;

$mazePath


# Graph(vertexes => 240, edges => 239, directed => False)

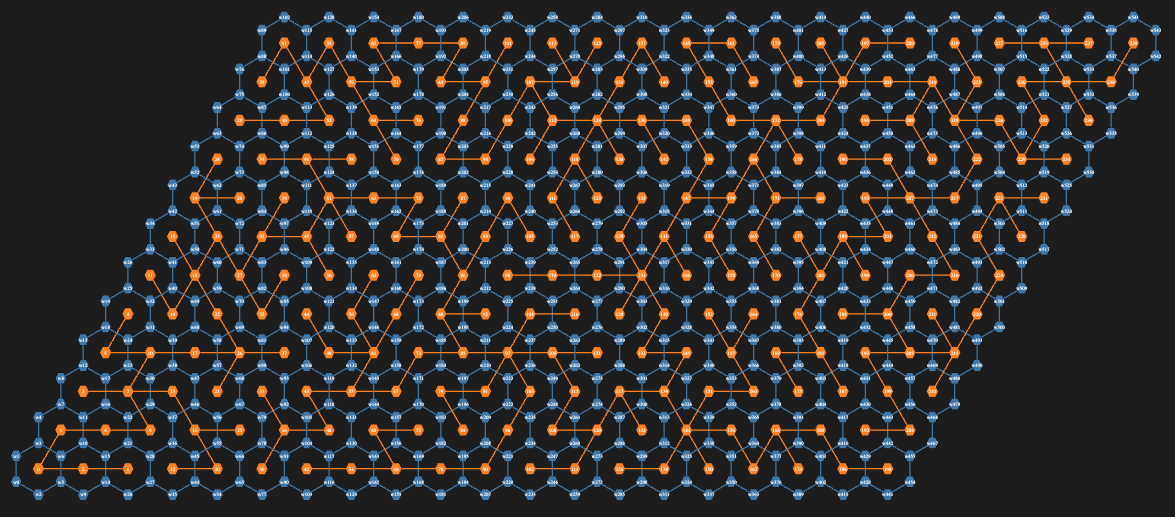

Combine the walls-maze and the maze-path graphs (i.e., make a union of them), and plot the resulting graph:

#% html

my $g3 = $g1.union($mazePath);

$g3.dot(
    highlight => $mazePath,
    :node-labels,
    background => "#1F1F1F",
    node-width => 0.85,
    node-height => 0.85,
    node-font-size => 28,
    node-shape => 'hexagon',
    edge-width => 7,
    size => '10,10!',
    engine => 'neato'
):svg

Make a nearest neighbor points finder functor:

my &finder = nearest($g1.vertex-coordinates.Array, method => 'KDTree');



Math::Nearest::Finder(Algorithm::KDimensionalTree(points => 544, distance-function => &euclidean-distance, labels => 544))

Take a maze edge and its vertex points:

my $e = $mazePath.edges.head;
my @points = $g2.vertex-coordinates{($e.kv)};


# [[-3.4641016151381225 -2] [-1.7320508075691228 1]]

Find the edge’s midpoint and the nearest wall-graph vertices:

my @m = |((@points.head <<+>> @points.tail) >>/>> 2);
say "Mean edge point: {@m}";
my @vs = |&finder.nearest(@m, 2, prop => <label>).flat;
say "To remove: {@vs}";


# Mean edge point: -2.5980762113536224 -0.5
# To remove: w3 w6

Loop over all maze edges, removing wall-maze edges:

my $g4 = $g1.clone;
for $mazePath.edges -> $e {
    my @points = $g2.vertex-coordinates{($e.kv)};
    my @m = |((@points.head <<+>> @points.tail) >>/>> 2);
    my @vs = |&finder.nearest(@m, 2, prop => <label>).flat;
    $g4 = $g4.edge-delete(@vs.head => @vs.tail);
}

$g4


# Graph(vertexes => 544, edges => 544, directed => False)

The start and end points of the maze:

my ($start, $end) = $g4.vertex-list.head, $g4.vertex-list.sort({ $_.substr(1).Int }).tail;


# (w0 w543)

Finding the Maze Solution:

my $solution = Graph::Path.new: $mazePath.find-shortest-path(|$mazePath.vertex-list.sort(*.Int)[0,*-1]);
$solution.vertex-coordinates = $mazePath.vertex-coordinates.grep({$_.key ∈ $solution.vertex-list }).Hash;

$solution


# Graph(vertexes => 50, edges => 49, directed => False)

Plot the maze:

#% html

my @mazeStartEnd = $start, $end, |$g4.neighborhood-graph([$start, $end]).edges;

my $g5 = $g4.union($solution);

my %opts =
    :!node-labels,
    background => "#1F1F1F",
    node-width => 0.8,
    node-height => 0.8,
    node-shape => 'circle',
    edge-width => 40,
    size => '10,10!',
    engine => 'neato';

$g4.dot(highlight => {'#1F1F1F' => @mazeStartEnd}, |%opts):svg

(Here is the solution of the maze).

Additional Comments

  • The initial (and unfinished) version of this document was created 13 months ago.
    • Its completion was postponed because the blog post “Day 12 – Graphs in Raku”, [AA1], featured many of the graph operations in “Graph”, [AAp1].
      • (Well, until this Raku Advent effort…)
  • The document demonstrates how feature-rich the package “Graph” is.
  • Here are the special graph functionalities used to create the mazes:
